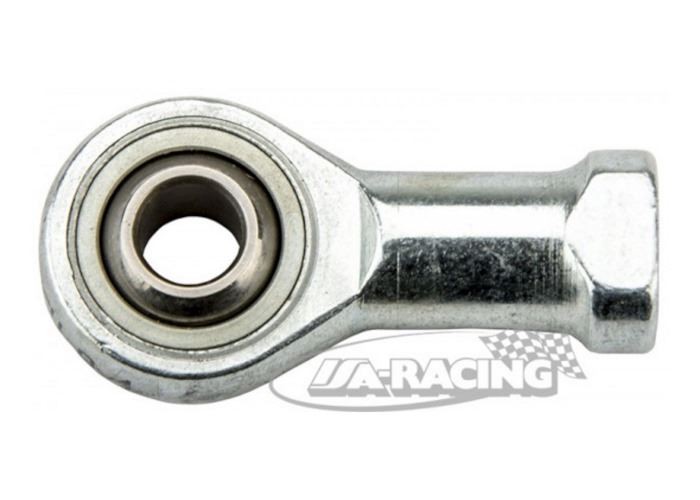

Standard Fluro Gelenk mit metrischem Innengewinde
| Artikelnummer: | 6184-2 |
19,20 CHF
Inkl. 8,1 % MwSt. zzgl. Versand
Lieferfrist ca. 2-3 Wochen
Standard Fluro Gelenke mit metrischem Innengewinde.
Gehäuse: bis Grösse 12 Automatenstahl 9SMnPb28K, gedreht, verzinkt ab Grösse 14 Vergütungsstahl C22, geschmiedet, verzinkt
Lagerschale: Automatenstahl 9SMnPb28K, verzinkt, mit eingeklebtem PTFE-Gewebe
Innenring: Wälzlagerstahl 100Cr6, gehärtet, geschliffen, poliert

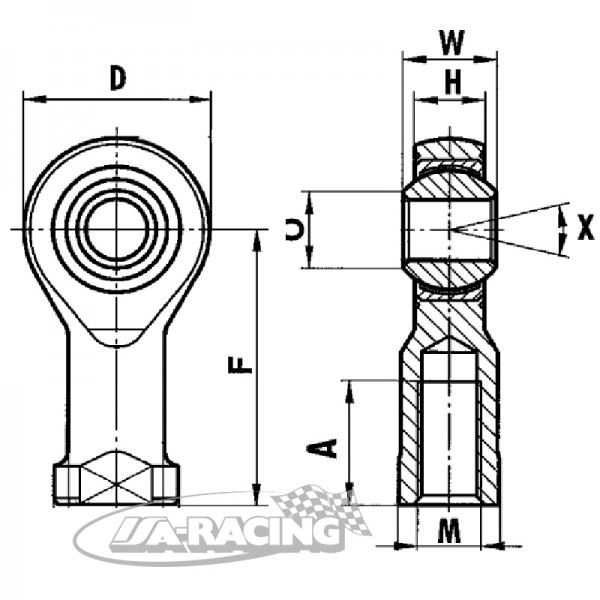

| Best. Nr. Rechtsgewinde | Best. Nr. Linksgewinde | M = Millimeter Gewinde | Bohrloch | W | H | O | D | F | A | Gewicht |
|---|---|---|---|---|---|---|---|---|---|---|
| 6180-1 | 6180-2 | M3x0,5 | 3mm | 6mm | 4,5mm | 5,1mm | 14mm | 21mm | 10mm | 6g |
| 6181-1 | 6181-2 | M5x0,8 | 5mm | 8mm | 6,0mm | 7,7mm | 18mm | 27mm | 10mm | 18g |
| 6182-1 | 6182-2 | M6x1 | 6mm | 9mm | 6,75mm | 8,9mm | 20mm | 30mm | 12mm | 27g |
| 6183-1 | 6183-2 | M8x1 | 8mm | 12mm | 9,0mm | 10,4mm | 24mm | 36mm | 16mm | 46g |
| 6183-3 | 6183-4 | M8x1,25 | 8mm | 12mm | 9,0mm | 10,4mm | 24mm | 36mm | 16mm | 46g |
| 6184-1 | 6184-2 | M10x1,25 | 10mm | 14mm | 10,5mm | 12,9mm | 28mm | 43mm | 20mm | 76g |
| 6184-3 | 6184-4 | M10x1,5 | 10mm | 14mm | 10,5mm | 12,9mm | 28mm | 43mm | 20mm | 76g |
| 6185-1 | 6185-2 | M12x1,25 | 12mm | 16mm | 12,0mm | 15,4mm | 32mm | 50mm | 22mm | 115g |
| 6185-5 | 6185-6 | M12x1,5 | 12mm | 16mm | 12,0mm | 15,4mm | 32mm | 50mm | 22mm | 115g |
| 6185-3 | 6185-4 | M12x1,75 | 12mm | 16mm | 12,0mm | 15,4mm | 32mm | 50mm | 22mm | 115g |
| 6186-1 | 6186-2 | M14x1,5 | 14mm | 19mm | 13,5mm | 16,8mm | 36mm | 57mm | 25mm | 170g |
| 6186-3 | 6186-4 | M14x2 | 14mm | 19mm | 13,5mm | 16,8mm | 36mm | 57mm | 25mm | 170g |
| 6187-1 | 6187-2 | M16x1,5 | 16mm | 21mm | 15,0mm | 19,3mm | 42mm | 64mm | 28mm | 230g |
| 6187-3 | 6187-4 | M16x2 | 16mm | 21mm | 15,0mm | 19,3mm | 42mm | 64mm | 28mm | 230g |
| 6188-1 | 6188-2 | M18x1,5 | 18mm | 23mm | 16,5mm | 21,8mm | 46mm | 71mm | 32mm | 320g |
| 6189-1 | 6189-2 | M20x1,5 | 20mm | 25mm | 18,0mm | 24,3mm | 50mm | 78mm | 47mm | 348g |
| 6189-3 | 6189-4 | M22x1,5 | 22mm | 28mm | 20,0mm | 25,8mm | 54mm | 84mm | 51mm | 443g |
