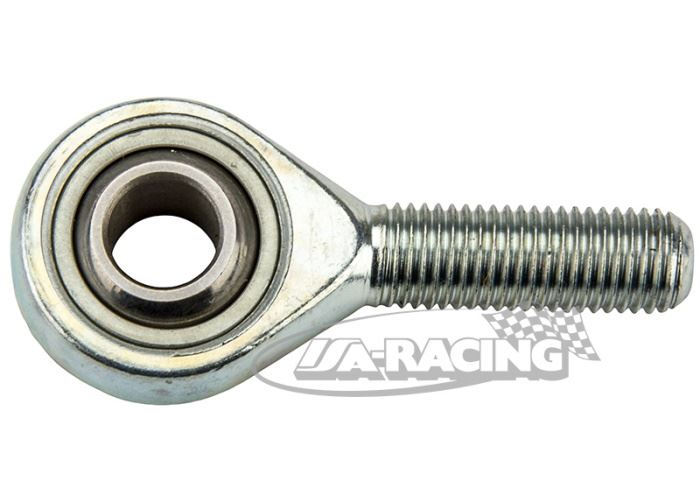

Standard Fluro Gelenk mit metrischem Aussengewinde
| Artikelnummer: | 6281-1 |
14,15 CHF
Inkl. 8,1 % MwSt. zzgl. Versand
Lieferfrist ca. 2-3 Wochen
Gehäuse: bis Grösse 12 Automatenstahl 9SMnPb28K, gedreht, verzinkt ab Grösse 14 Vergütungsstahl C22, geschmiedet, verzinkt
Lagerschale: Automatenstahl 9SMnPb28K, verzinkt, mit eingeklebtem PTFE-Gewebe
Innenring: Wälzlagerstahl 100Cr6, gehärtet, geschliffen, poliert
Standard Fluro Gelenk mit metrischem Aussengewinde.

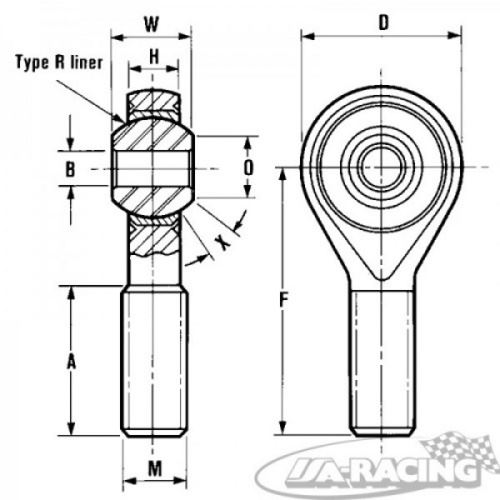

| Best. Nr. Rechtsgewinde | Best. Nr. Linksgewinde | M = Millimeter Gewinde | B = Bohrloch | W | H | O | D | F | A | Gewicht |
|---|---|---|---|---|---|---|---|---|---|---|
| 6280-1 | 6280-2 | M3x0,5 | 3mm | 6mm | 4,5mm | 5,1mm | 14mm | 26mm | 15mm | 6g |
| 6281-1 | 6281-2 | M5x0,8 | 5mm | 8mm | 6,0mm | 7,7mm | 18mm | 33mm | 20mm | 13g |
| 6282-1 | 6282-2 | M6x1 | 6mm | 9mm | 6,75mm | 8,9mm | 20mm | 36mm | 22mm | 20g |
| 6283-1 | 6283-2 | M8x1 | 8mm | 12mm | 9,0mm | 10,4mm | 24mm | 42mm | 25mm | 33g |
| 6283-3 | 6283-4 | M8x1,25 | 8mm | 12mm | 9,0mm | 10,4mm | 24mm | 42mm | 25mm | 33g |
| 6284-1 | 6284-2 | M10x1,25 | 10mm | 14mm | 10,5mm | 12,9mm | 28mm | 48mm | 29mm | 56g |
| 6284-3 | 6284-4 | M10x1,5 | 10mm | 14mm | 10,5mm | 12,9mm | 28mm | 48mm | 29mm | 56g |
| 6285-1 | 6285-2 | M12x1,25 | 12mm | 16mm | 12,0mm | 15,4mm | 32mm | 54mm | 33mm | 87g |
| 6285-5 | 6285-6 | M12x1,5 | 12mm | 16mm | 12,0mm | 15,4mm | 32mm | 54mm | 33mm | 87g |
| 6285-3 | 6285-4 | M12x1,75 | 12mm | 16mm | 12,0mm | 15,4mm | 32mm | 54mm | 33mm | 87g |
| 6286-1 | 6286-2 | M14x1,5 | 14mm | 19mm | 13,5mm | 16,8mm | 36mm | 60mm | 38mm | 129g |
| 6286-3 | 6286-4 | M14x2 | 14mm | 19mm | 13,5mm | 16,8mm | 36mm | 60mm | 38mm | 129g |
| 6287-1 | 6287-2 | M16x1,5 | 16mm | 21mm | 15,0mm | 19,3mm | 42mm | 66mm | 40mm | 189g |
| 6287-3 | 6287-4 | M16x2 | 16mm | 21mm | 15,0mm | 19,3mm | 42mm | 66mm | 40mm | 189g |
| 6288-1 | 6288-2 | M18x1,5 | 18mm | 23mm | 16,5mm | 21,8mm | 46mm | 72mm | 44mm | 267g |
| 6289-1 | 6289-2 | M20x1,5 | 20mm | 25mm | 18,0mm | 24,3mm | 50mm | 78mm | 47mm | 348g |
| 6289-3 | 6289-4 | M22x1,5 | 22mm | 28mm | 20,0mm | 25,8mm | 54mm | 84mm | 51mm | 443g |
