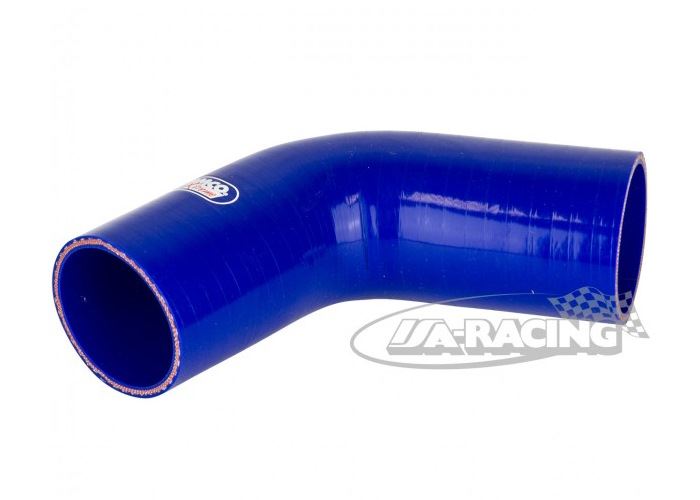

Samco Silikon-Aramid Schlauchbogen 60°
| Artikelnummer: | SXE606.5 |
25,25 CHF
Inkl. 8,1 % MwSt. zzgl. Versand
Lieferfrist über 3 Wochen
Silikon-Aramid Schlauchbogen 60°.
Einsatzbereich: Kühlwasser, Druckschlauch, Ladeluft, Turbolader
Material: Verstärktes Silikon mit Aramid
max. Temperatur: ca. 250°C
Lagen: 4
| Innendurchmesser | Wandstärke | Schenkellänge | Betriebsdruck max. | Platzdruck |
|---|---|---|---|---|
| 6.5mm | 4,0mm | 63,0mm | 19,2 bar | 76,6 bar |
| 8mm | 4,0mm | 63,0mm | 16,1 bar | 64,2 bar |
| 9.5mm | 4,0mm | 63,0mm | 13,9 bar | 55,4 bar |
| 11mm | 4,0mm | 63,0mm | 12,2 bar | 48,9 bar |
| 13mm | 4,0mm | 102,0mm | 10,6 bar | 42,4 bar |
| 16mm | 4,0mm | 102,0mm | 8,9 bar | 35,5 bar |
| 18mm | 4,0mm | 102,0mm | 8,0 bar | 32,3 bar |
| 19mm | 4,0mm | 102,0mm | 7,7 bar | 30,6 bar |
| 20mm | 4,0mm | 102,0mm | 7,2 bar | 28,8 bar |
| 22mm | 4,0mm | 102,0mm | 6,8 bar | 27,0 bar |
| 25mm | 4,0mm | 102,0mm | 6,1 bar | 24,2 bar |
| 28mm | 4,0mm | 102,0mm | 5,5 bar | 22,0 bar |
| 30mm | 4,0mm | 102,0mm | 5,2 bar | 20,7 bar |
| 32mm | 4,0mm | 102,0mm | 9,4 bar | 19,6 bar |
| 35mm | 4,0mm | 102,0mm | 4,5 bar | 18,1 bar |
| 38mm | 4,0mm | 102,0mm | 4,2 bar | 16,9 bar |
| 41mm | 4,0mm | 102,0mm | 4,0 bar | 15,8 bar |
| 45mm | 4,0mm | 102,0mm | 3,7 bar | 14,6 bar |
| 48mm | 4,0mm | 102,0mm | 3,5 bar | 13,8 bar |
| 51mm | 4,0mm | 102,0mm | 4,3 bar | 17,4 bar |
| 54mm | 4,0mm | 102,0mm | 4,1 bar | 16,5 bar |
| 57mm | 4,0mm | 102,0mm | 3,9 bar | 15,7 bar |
| 60mm | 4,0mm | 127,0mm | 3,7 bar | 15,0 bar |
| 63mm | 4,0mm | 127,0mm | 3,6 bar | 14,3 bar |
| 65mm | 4,0mm | 127,0mm | 3,5 bar | 13,9 bar |
| 68mm | 4,0mm | 127,0mm | 3,3 bar | 13,4 bar |
| 70mm | 4,0mm | 127,0mm | 3,3 bar | 13,0 bar |
| 76mm | 4,0mm | 127,0mm | 3,0 bar | 12,1 bar |
| 80mm | 4,0mm | 127,0mm | 2,9 bar | 11,6 bar |
| 83mm | 4,0mm | 127,0mm | 2,8 bar | 11,2 bar |
| 89mm | 4,0mm | 127,0mm | 2,6 bar | 10,5 bar |
| 102mm | 4,0mm | 152,0mm | 2,3 bar | 9,3 bar |
